PX3 - Nuovo Progetto

PREAMPLIFICATORE MOD.  PX3 Preamplificatore stereo
Tipologia                                     Stereo  sbilanciato
Tecnologia                                A stadio solido classe A
Risposta di frequenza       10..100.000  -0,5 dB
Distorsione  a vuoto           0,02 %  per 6,8V  in uscita
Distorsione con carico di 68 ohm  0,028% per 1,2V in uscita
Ingressi                                        6 linea + 1 phono mm/mc
Sensibilità ingressi             150 mV linea per 1,2V out
                                       2 mV phono mm per 1,2V out
                                               0,3mV phono mc per 1,2 V out
Impedenza ingressi                linea 47.000 ohm
                                                           phono mm 47.000 ohm
                                                          phono mc 200 ohm
Impedenza d'uscita             Tape out carico minimo 3k ohm
                                                         Pre out  330 ohm

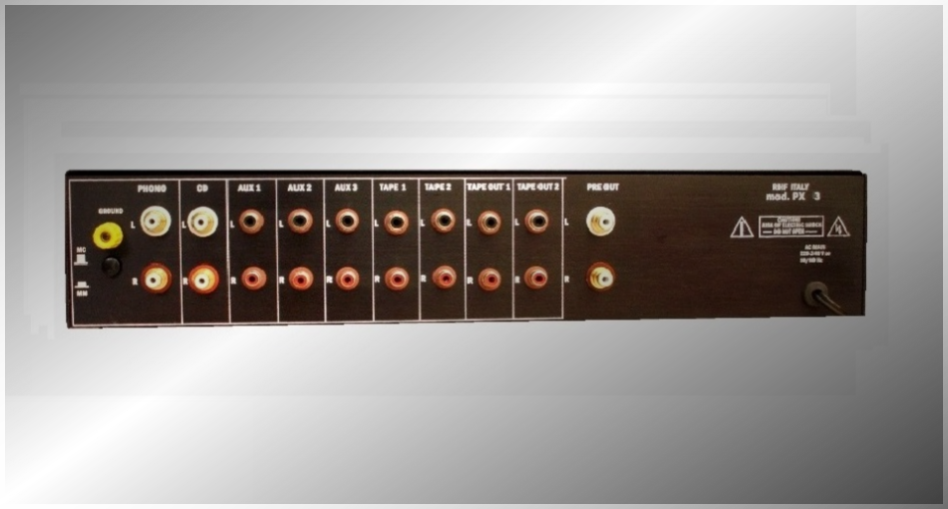

Uscite                                               RCA sbilanciata
Tensione max uscita            13 V
Tensione di saturazione
phono  mm.                                   174 mV
phono mc                                       20 mV
Rumore residuo                    -90 LINEA - 70 dB phono
Dimensioni totali                 L= 45 cm. H= 10 cm. P= 28 cm.
Peso                                                  circa 9 Kg.
Finitura                                         Black (silver a richiesta)
Note particolari                   Alimentazioni stabilizzate
Potenziometro di volume Alps
Alimentazione                      230 V ac 110 V a richiesta
Potenza assorbita                 18 W
